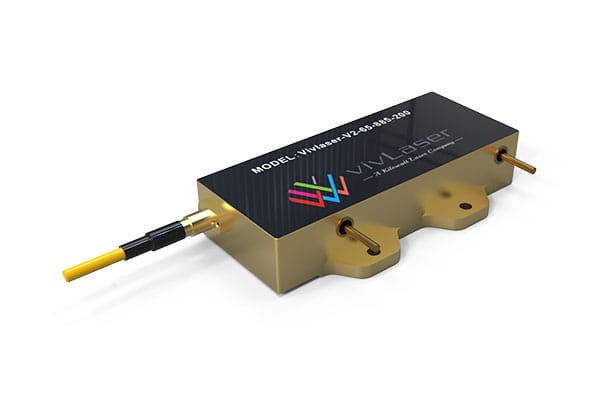

For system integrators and DPSS laser developers seeking wavelength-stabilized high-power laser sources, the V2-65-885-200 delivers 65W of continuous output at 885nm, precise spectral control, and long-term performance through a 200 µm fiber with SMA905 connector.
Its 0.5 nm narrow linewidth and robust locking current range make it ideal for solid-state laser pumping and advanced photonics platforms.
为什么选择 885nm for Solid-State Laser Pumping?
Compared to 808 nm or 880 nm pump diodes, 885 nm offers:
- Improved matching with Nd:YAG and vanadate absorption peaks
- Lower thermal load inside gain media
- Enhanced laser efficiency and beam quality
The V2-65-885-200 is designed to deliver consistent output over time, even in demanding OEM environments.
Key Technical Features – V2-65-885-200
| Parameter | Value |
|---|---|
| Output Power (CW) | 65 W |
| Center Wavelength | 885 nm (±0.5 nm) |
| Spectral Width (FWHM) | 0.3–0.5 nm |
| Fiber Core / NA | 200 µm / 0.22 |
| Connector Type | SMA905 |
| Fiber Length | 1.5 m |
| Slope Efficiency / PCE | 8.5 W/A / 45% |
| Operating Current / Voltage | 9–10 A / 15–16 V |
| Wavelength Lock Current Range | 6–11 A |
| Temp. Drift Coefficient | 0.02 nm/°C |
| Cooling Requirement | ≥100 W heat dissipation |
📎 All values tested at 25°C, unless otherwise stated
Designed for High-Stability DPSS and OEM Applications
This module is particularly well-suited for:
- Nd:YAG / Nd:YVO₄ DPSS laser pumping
- Medical and aesthetic solid-state lasers
- Scientific laser setups needing precise spectral control
- OEM platforms requiring long-lifetime fiber-coupled sources
The combination of narrow FWHM and wide locking current range allows flexible driver configurations and stable integration with volume Bragg gratings (VBGs) or cavity filters.
Integration Benefits
- SMA905 standard connector – ready for most commercial fiber-coupled systems
- 200 µm fiber core – supports high-power density and beam coupling
- Low thermal drift – keeps wavelength stable even under varying conditions
- Compact housing – suitable for space-constrained OEM builds
Supporting Customization and OEM Collaboration
活力激光 supports custom OEM requests:
- Different fiber types or connectors (FC, LC, bare fiber)
- Wavelength tuning (e.g., 884.8 / 885.2 nm)
- Alternative form factors or driver interface
- Active TEC control integration
Trusted by Industry and Research Leaders
Our 885 nm stabilized diode laser modules are powering systems in:
- High-precision laser cutting
- Medical surgical platforms
- Pumping stages for dual-wavelength DPSS lasers
- Wavelength conversion systems for IR applications
📄 View more technical details of V2-65-885-200 here 📩 联系我们 at info@120.55.38.228 for OEM pricing, lead time, or customization support
